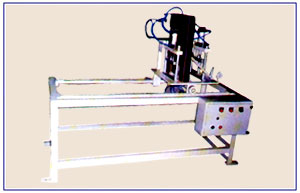

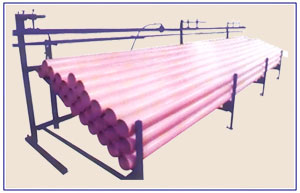

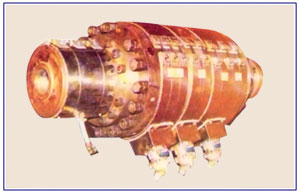

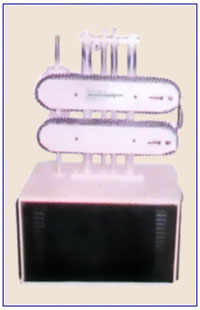

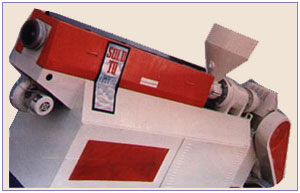

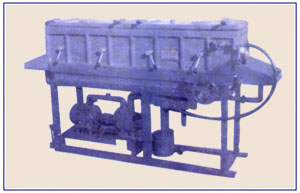

Single Screw Extruder With warm Gear Box Single Screw Extruder With Helical Gear Box Die Head PH2 40-1100 Die Head for smaller sizes of pipes ranges from 16mm-50 with stainless steel spider Die Head for bigger sizes of pipes 40mm - 160mm Cooling Unit Vaccum tank for smaller sizes of pipe ranges from 20-25 sizing for better control & proper Water tank with sprays for bigger diameter Tipping Chute Operated with pneumatic cylinder for pipe stacking Cutting Saw Fitted with pneumatic cylinder for proper gripping Limit switch to sense the set length of the pipe Caterpuller Drive through DC motor and speed is

Main Specifi- cations	Extruder								Vacuum Sizing Tank			Cooling Tanks		Pipe Traction Units			Pipe Cutting Units
Machine Models	Min. Pipe OD (mm)	Max. Pipe OD (mm)	Max. Plastisizing Cap. (kg.hr.)	Max. Output (kg.hr.)	Main Drive HP	Heating Barrel (KW) Die (KW)		Screw Speed Variation (rpm)	Pump Drive (KW)	Length (Mtrs.)	Water Reqel Rements Circulating (Ltr./min.)	Length (Mtrs.)	Water Requir- ement Circula- ting (Ltr. / min.)	Drive Range (KW)	Pulling Speed (Mtr./Min)  Barrel (KW) Die (KW)		Saw Dia (mm)	Saw Drive Load Kw / rpm
HPMC 65	16	50	60	60	15	8.00	2	20-16	3.7	2.0	450	-	-	0.75	0.735 to 1.147	0.71 to 3.55	300	0.75 / 2800
HPMC 75	40	110	90	90	20	12	5	15-60	-	-	450	-	-	1.5	0.4 to 2.0	1.4 to 7.2	300	0.75 / 2800
HPMC 90	63	160	150	120	30	15	5	10-50	-	-	-	4.5	500	1.5	0.4 to 2.0	1.4 to 7.2	400	0.75 /2800
